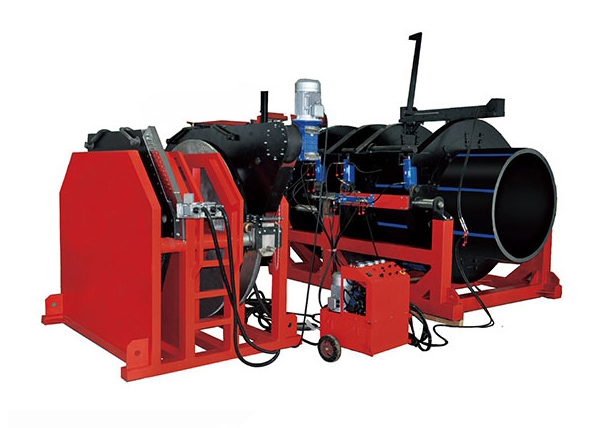

Nama Produk : SHD 1600 - SHD 2000
Harga : -
Description
  • Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF material.
  • Consists of basic frame, hydraulic unit, planing tool, heating plate, basket & optional parts.
  • Removable PTFE coated heating plate with high accurate temperature control system.
  • Electrical planing tool.
  • Reliable structure design, suitable for multi-jobsites.
  • Changeable welding position enables to weld various fittings more easily.
  • High accurate and shockproof pressure meter.
  • Separate two-channel timer records time in soaking and cooling phases.
  • PLC control is an option.
SHD 1600
Welding scope (mm) 1000, 1200, 1400, 1600
The highest temperature heating plate 270˚C
The heating plate surface temperature difference (170~250˚C) < ±10˚ C
Pressure regulating range 0 - 25 Mpa
Working voltage 380VAC 3P+N+PE 50Hz
The heating plate power 42 KW
Milling power 7.5 KW
Hydraulic total power 7.5 KW
The total power 57kW
Weight 5200KG

SHD 2000
Welding scope (mm) 1200, 1400, 1600, 1800, 2000
The highest temperature heating plate 270˚C
The heating plate surface temperature difference (170~250˚C) < ±10˚ C
Pressure regulating range 0 - 16 Mpa
Working voltage 380VAC 3P+N+PE 50Hz
The heating plate power 80 KW
Milling power 7.5 KW
Hydraulic total power 7.5 KW
The total power 95kW
Weight 20570KG
